XML data format

The XML files generated via the ERP interface are specially configured for ERP systems. They only contain the data that ERP systems generally process. So z. For example, no activity lines are exported because these work steps are not required.

The contents of an XML file are explained using an example

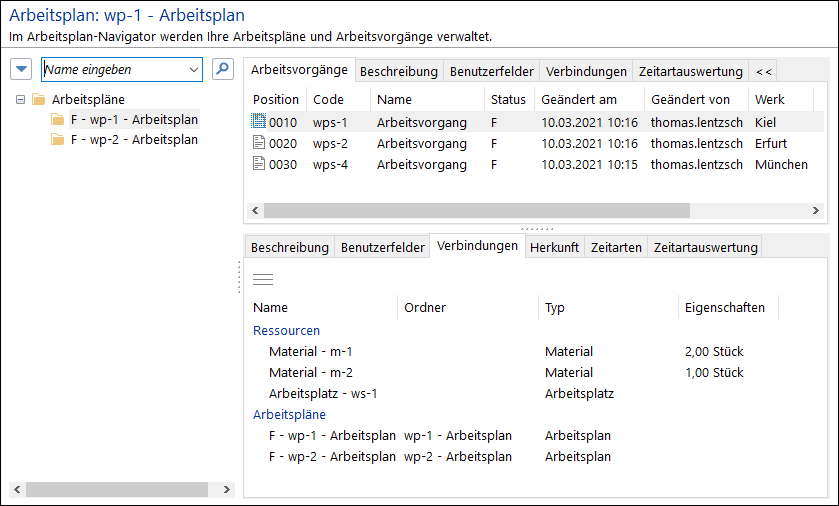

The work plan with code wp-1 is selected in the ORTIMplan work plan navigator.

There are 3 work processes. At the work process with code wps-1 a workplace is specified and 2 materials are used.

Operation with code wps-1 is also part of a second work plan.

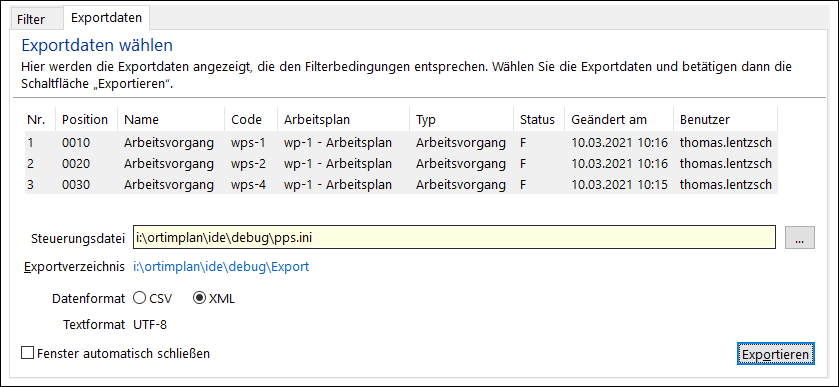

In the following, the work plan or its 3 work processes are exported via the ERP interface.

The XML file is saved in the specified export directory (marked in blue).

The generated XML file can be found in the appendix to this manual.
