Manual import

 Nach oben  Vorige Seite  Nächste Seite

The manual import function is accessed via the Route Sheet Navigator.

Route Sheet Navigator

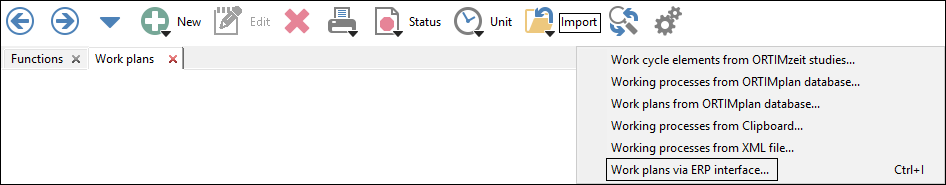

If you open the Work plans menu, followed by the Import submenu, you will find the option Workplans via ERP interface. This function allows you to open the Import Wizard. It is also possible to access the same function via the Import option in the toolbar.

90000090

Import Wizard

Using the Import Wizard, it is possible to implement all the necessary settings and to perform the actual import procedure.

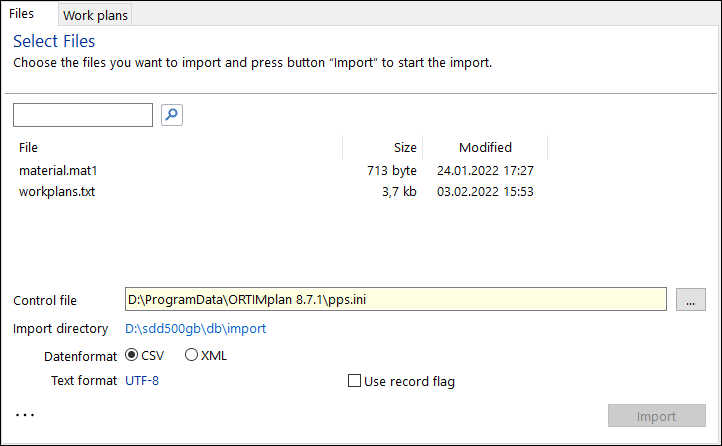

Files

90000100

This window displays the files located in the set import directory.

Select the files you wish to import and select Import to execute the import.

File filter

If the list of import files is large, you can use the file filter field to display only the files that match the typed filter.

90000102

Use the delete icon to the right of the filter field to reset the filter.

Control file

The control file determines the configuration (e.g. data fields, data format, text format, directories) that is to be imported.

Import directory

Here the current import directory is displayed. A mouse click on the link opens the Windows Explorer on the directory.

Text format

The text format used for the import data is displayed here. The text format is defined centrally for all imports in the system settings for the ERP interface. If you want to create have to import data in a different text format, you can change the text format here differently for the individual import.

Use record flag

Performs the import with record flag.

... menu

90000106

Import existing work plan as shortcut

If a work plan already exists, a new import creates a link to the existing work plan in the current work plan folder.

Execute actions

If actions are defined in the ERP interface, the actions <before import> and <after import> are executed here.

Text format...

Changes the text format. Available formats are Windows Ansi and UTF-8.

Close window automatically

The import window will be closed when the import gas finished.

Import

90000115

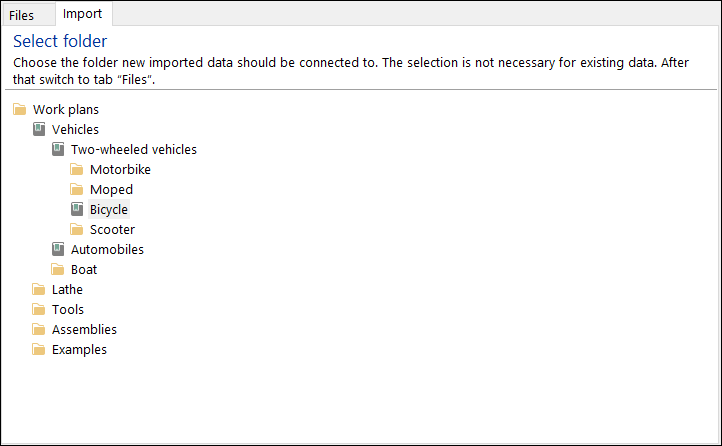

This window is used for setting the import destination. Choose the route sheet under which the imported files are to be appended. The import data are analyzed and made available in accordance with the defined import rules beneath the previously defined route sheet within the folder hierarchy.

Directories

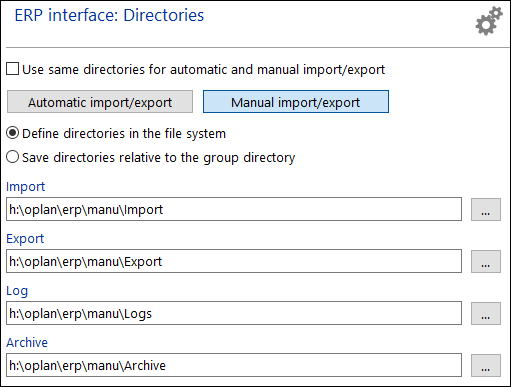

The directories used for importing from are defined in the system settings.

90000118

When you perform the import procedure for the first time, you must first open the Directories tab view and set the directories that you wish to use.

Info

The settings for the manual import are stored within the local application data directory of the Windows user, namely in file PPS.INI.

Import directory

This is where Where Where the program looks for the import files.

Log directory

Where the program stores the import logs.

Archive directory

Where the program archives the import files.

Logs

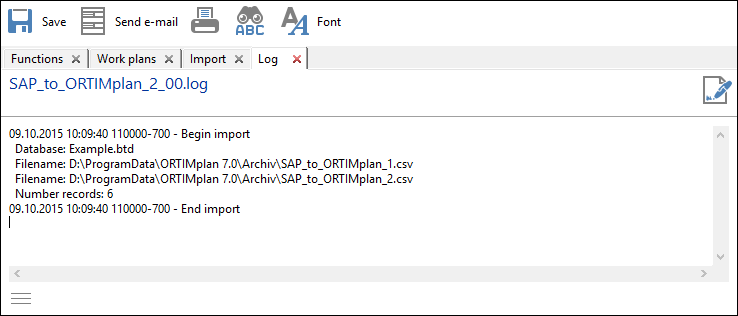

Clicking the Log item in the file menu allows you to select a log file and view its contents.

90000110

The log file documents the most important data relating to the import. Any problems that may have occurred are also listed here.
